NLJD RB 401 (403) compact non linear junction detector

Non-linear junction detector NLJD RB 401 is compact version of NLJD RB 400. All features of NLJD RB 400 are available except it has no extendable telescopic bar making whole construction much smaller and more convenient for transportation.

Non- linear junction detector NLJD RB 401 application areas:

  • Detection of active and passive electronic eavesdropping devices;
  • Searching for mobile phones and SIM cards;
  • Checking of mail and packages for contraband or forbidden objects containing semiconductors;
  • Inspection of people;

NLJD RB 401 distinctive features:

  • High detection sensitivity at a low output power;
  • Effective work against interference (reinforced structures, corrosion, etc.).
  • Low probability of false alarms.
  • Additional opportunities to identify the response provided by the analysis of signals in the “Audio mode”.
  • Standard replaceable battery provides up to 2-3 hours of continuous operation. 401 “NLJD RB ” comes with two batteries that can increase the uptime up to 4-6 hours.
    The detector is supplied in a shock-proof pelican type case.

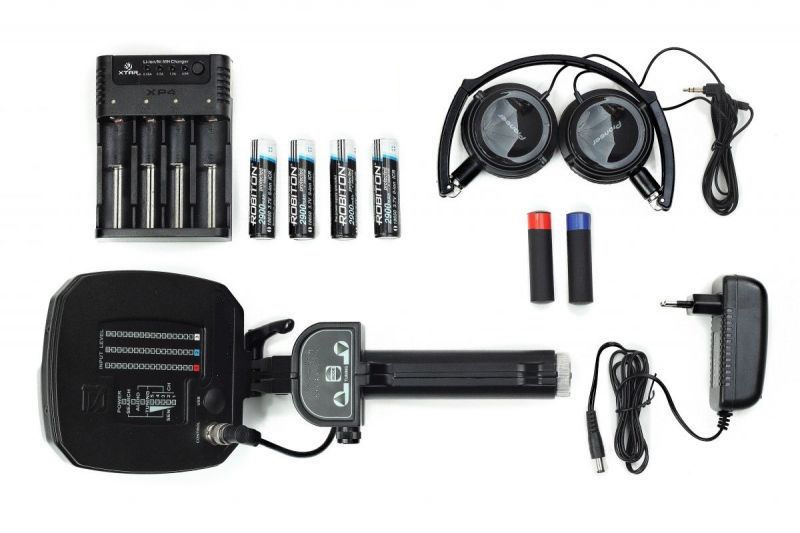

NLJD RB 401 Delivery set includes:

  1. NLJD RB 401 non-linear junction detector
  2. Standard battery set – 4 pcs
  3. Charging unit
  4. A cable for charging unit
  5. Headphones
  6. Test targets – 2 pcs
  7. Operation manual
  8. Transportation shockproof package

NLJD RB 401 Technical Characteristics:

Frequency range

2-3 Ghz

The maximum radiated peak power

Less than 2W

Antenna

elliptic

Operating modes

"search, "audio", "adaptation"

The range of sensitivity adjustment in manual mode

40 dB (5 steps with 8 dB increment)

Indication:

- visual

three 16 LEDs bars

- audible

built-in speaker, headphones

Power supply

Li-ion 3.7 V rechargeable battery (18650 type)

Run time of a fully charged battery

3 to 4 hours (depending on the operating mode)

Charge time

not more than 3 hours

Operating conditions

- temperature

+5Co...+40Co

- humidity

not more than 85% (under +25Co)

Weight with battery

0.85 kg

Dimensions when folded (length, width, height)

340x130x160 mm

Weight of the full set

 3.7 kg
